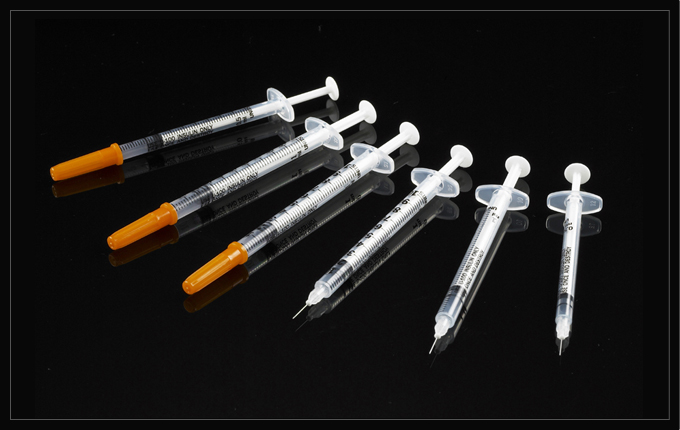

INSULIN SYRINGE

• 01
  Introduction



  Single-use syringe to inject insulin into human body. A needle is produced from STS304 stainless tubes defined in ISO 9626 or KSD 3698. The needle surface is siliconized to minimized penetration resistance. Barrel, plunger and cap are made with PP.

• 02
  Used for



  Sterilized single-use syringe to inject insulin into human body

• 03
  Specification

  Syringe specification	Syringe Type	Barrel	Outer Diameter	Inner Diameter	Cap Length
  	1.0mL	81.4mm	6.73mm	4.50mm	26mm
  	0.5mL	75.1mm	5.50mm	3.36mm	26mm

  Needle specification	Gauge	Outer Diameter	Inner Diameter	Length
  	31G	0.254mm ~ 0.267mm	0.114mm	8mm [5/16”] 12mm[1/2”]
  	30G	0.298mm ~ 0.320mm	0.133mm
  	29G	0.324mm ~ 0.351mm	0.133mm
  	28G	0.349mm ~ 0.370mm	0.133mm	9mm [3/8”]
  	27G	0.400mm ~ 0.420mm	0.184mm	15mm [5/8”]
  	26G	0.440mm ~ 0.470mm	0.232mm	19mm [3/4”]

• This product is "medical equipment", please carefully read "Usage notes" and "Usage method" and use it.
