SOFT NEEDLESOFT NEEDLE

• 01
  Introduction



  Single-use soft needle has a closed tip and the hole on its side aspirates body fluid or inject medicine.

• 02

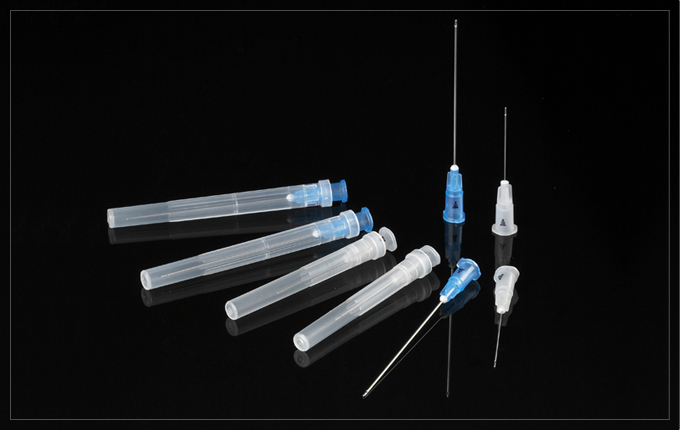

  Appearance



  The needle is produced from STS304 stainless tubes defined in KSD 3698.
  The hub made of synthetic resin has unique color by specification.

• 03
  Used for



  Used as cannula and connector commonly inserted to blood vessel or body cavity. Or connected to tube

• 04
  Specification

  Tae-Chang soft needles are designed with soft round closed tip.

  Gauge	OD	Hub Color	Needle Length
  18G	1.200mm ~ 1.300mm	Pink	5~7/8” [150mm] 4.0” [100mm] 3~9/16” [90mm] 3~1/8” [80mm] 2~3/4” [70mm] 2~3/8” [60mm] 2.0” [50mm] 1~1/2” [40mm] 1~1/4” [30mm] 1.0” [25mm]
  19G	1.030mm ~ 1.100mm	Cream
  20G	0.860mm ~ 0.920mm	Yellow
  21G	0.800mm ~ 0.830mm	Deep Green
  22G	0.698mm ~ 0.730mm	Black
  23G	0.600mm ~ 0.673mm	Deep Blue
  24G	0.550mm ~ 0.580mm	Medium Purple
  25G	0.500mm ~ 0.530mm	Orange
  26G	0.440mm ~ 0.470mm	Brown
  27G	0.400mm ~ 0.420mm	Medium Grey
  28G	0.349mm ~ 0.370mm	Blue Green
  29G	0.324mm ~ 0.351mm	Red
  30G	0.298mm ~ 0.320mm	Yellow

• This product is "medical equipment", please carefully read "Usage notes" and "Usage method" and use it.
